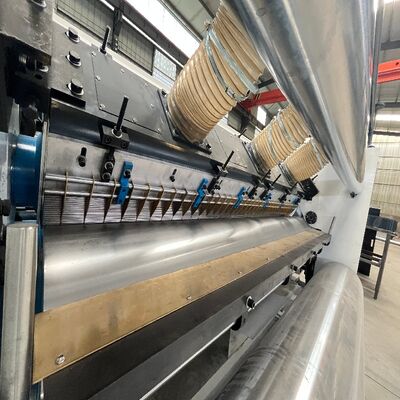

Model Modularized Single Facer Hood Suction Structure HT200 Wallboard

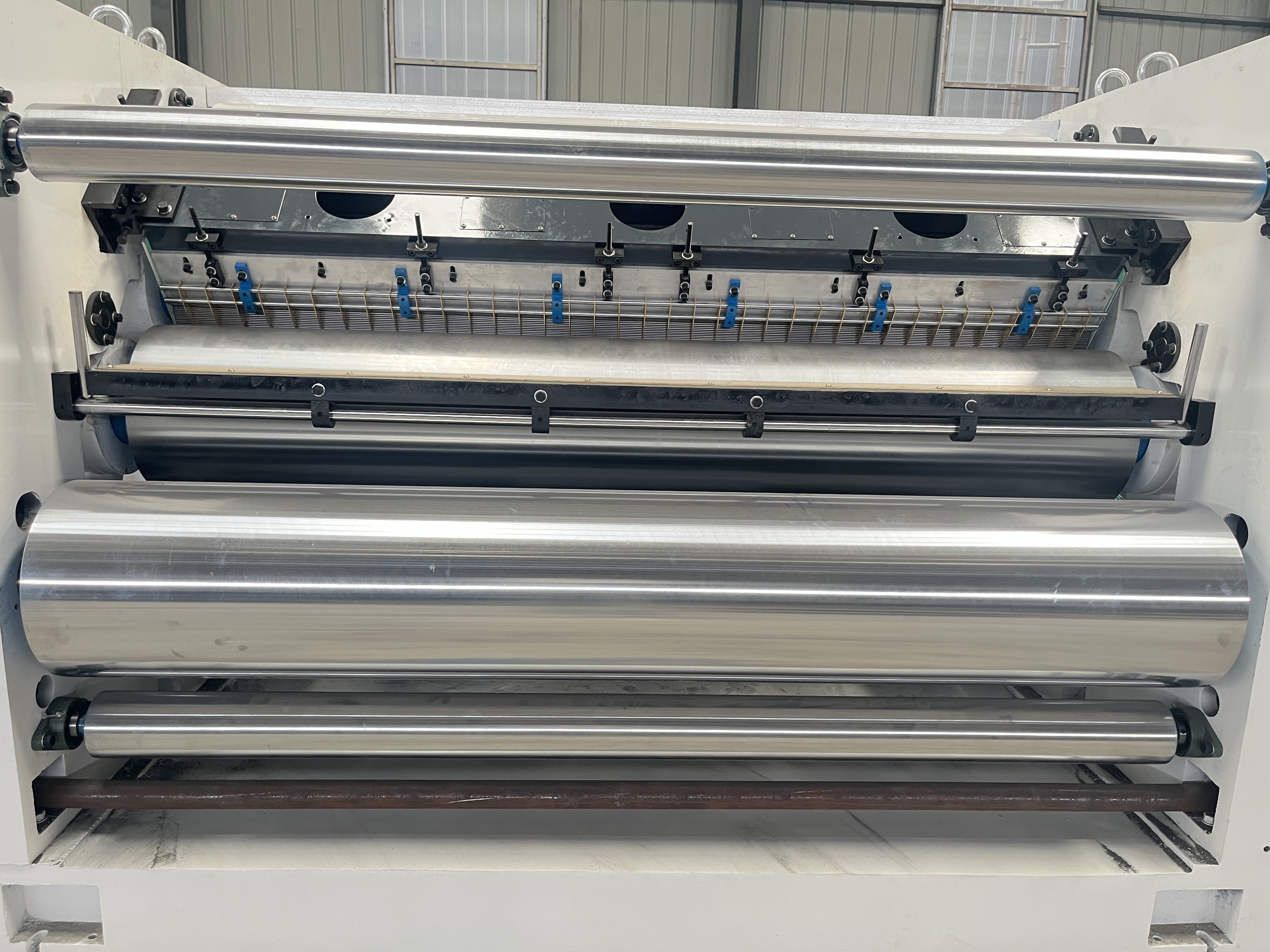

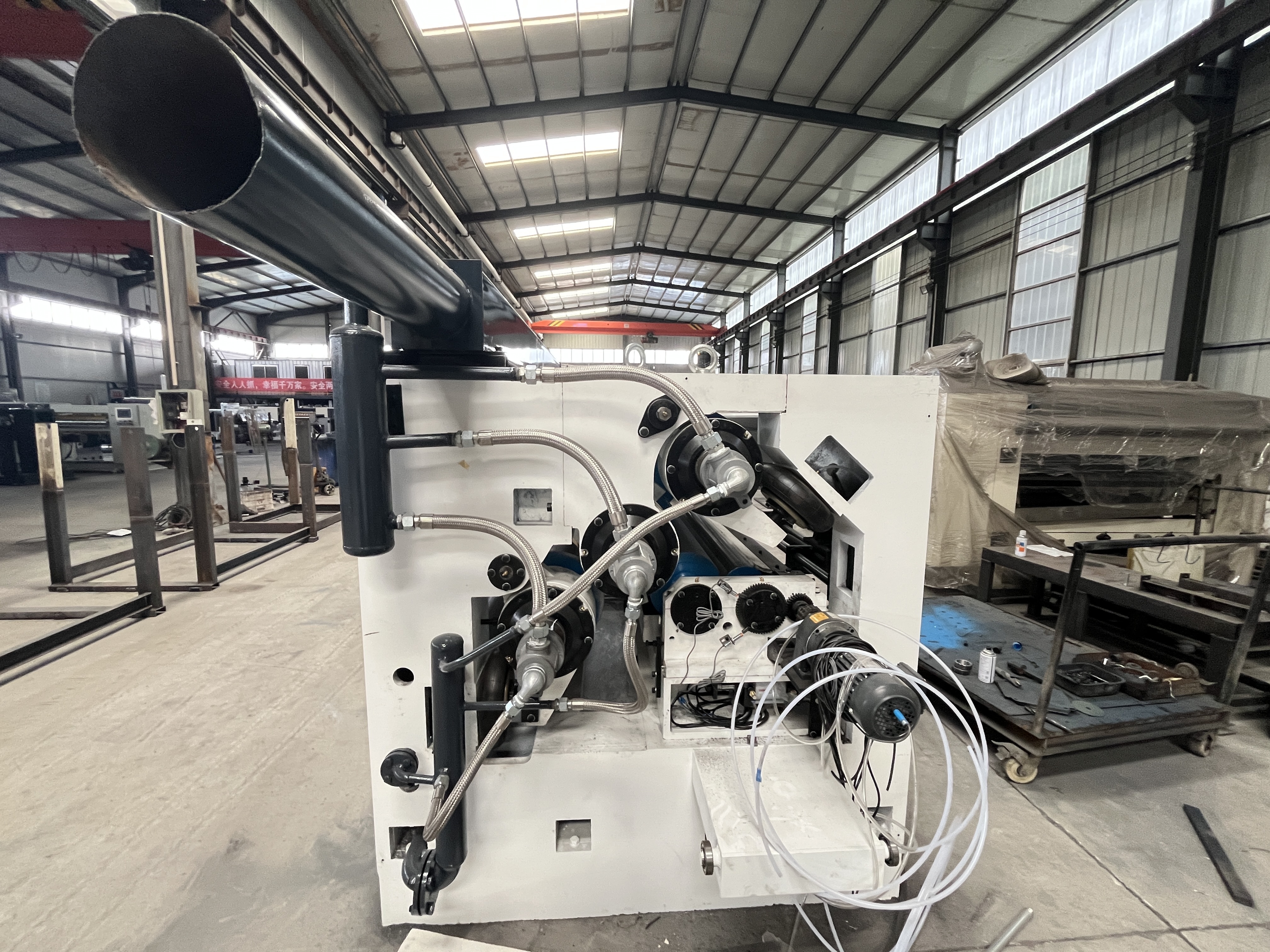

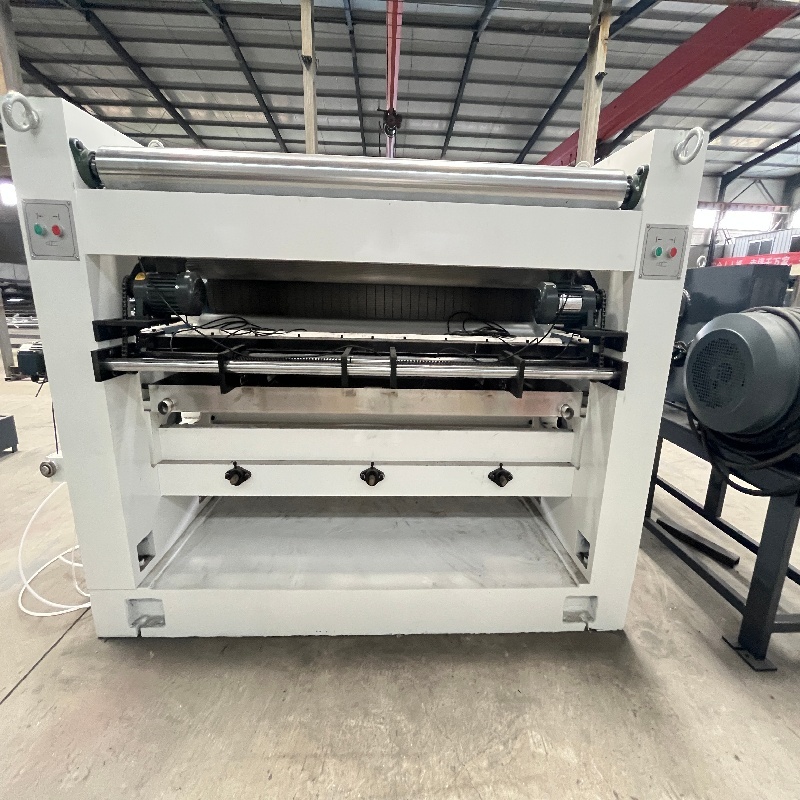

SF-360-2500 Model Modularized Single Facer
Structural Features

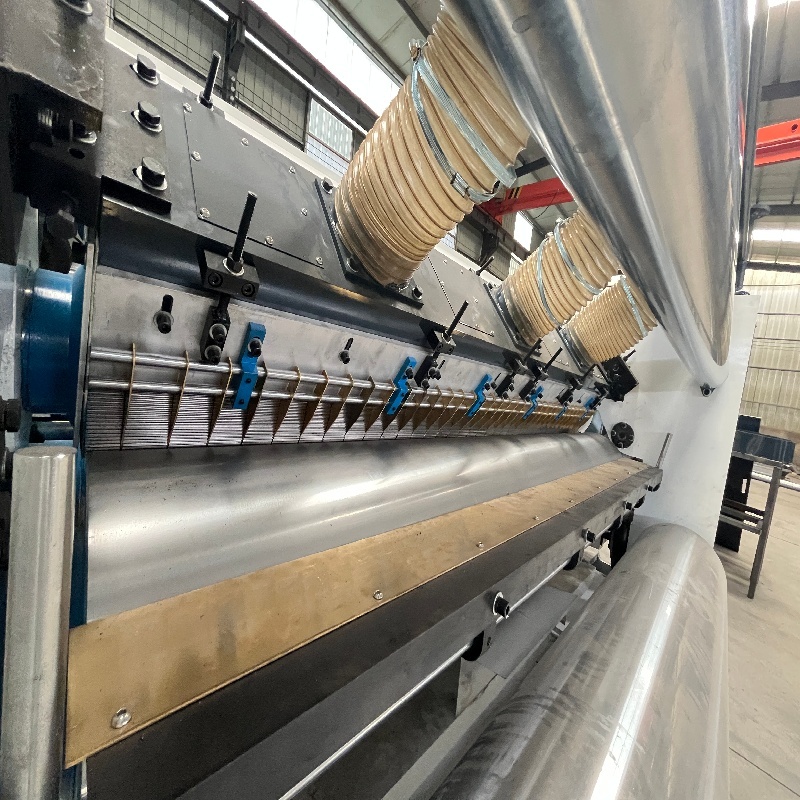

- Hood suction structure with high-pressure powerful fan and silencer
- Air source and electrical control concentrated in same operating cabinet, positioned at least 1.5 meters from main machine
- Fully enclosed and covered operating side
- Machine base and wall panels constructed from high-quality resin sand castings with 240mm wall panel thickness

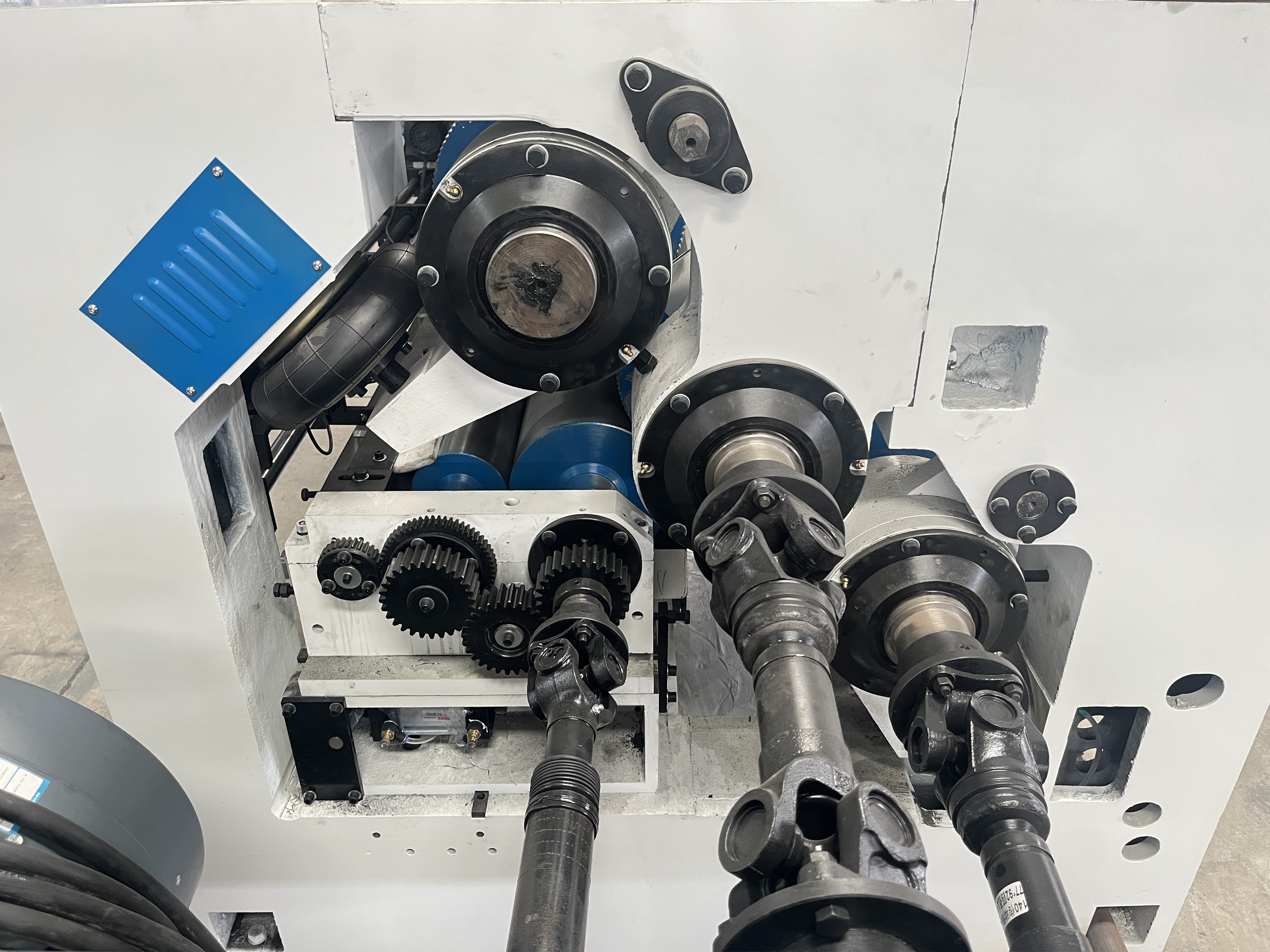

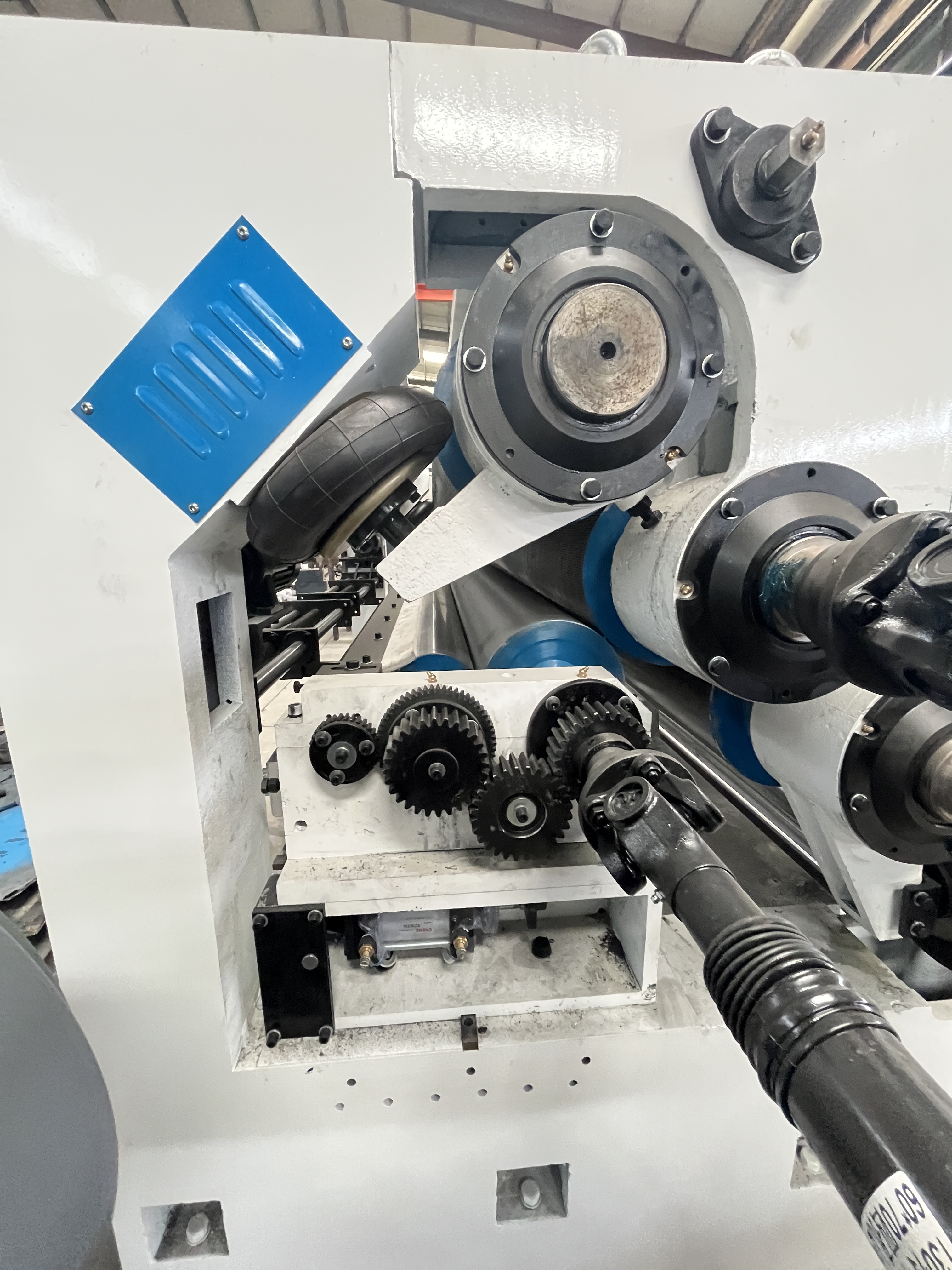

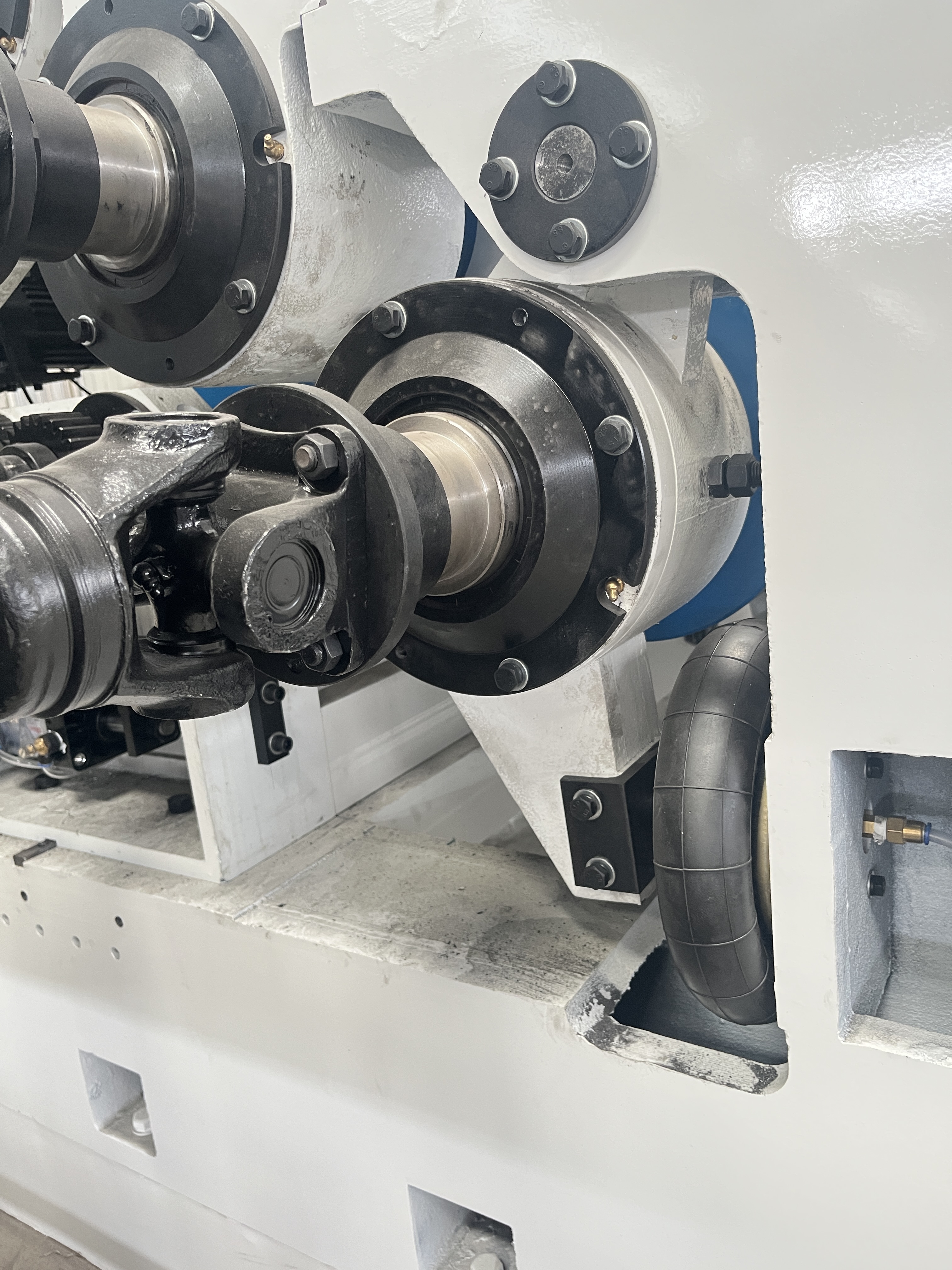

- Independent gearbox with universal joint transmission

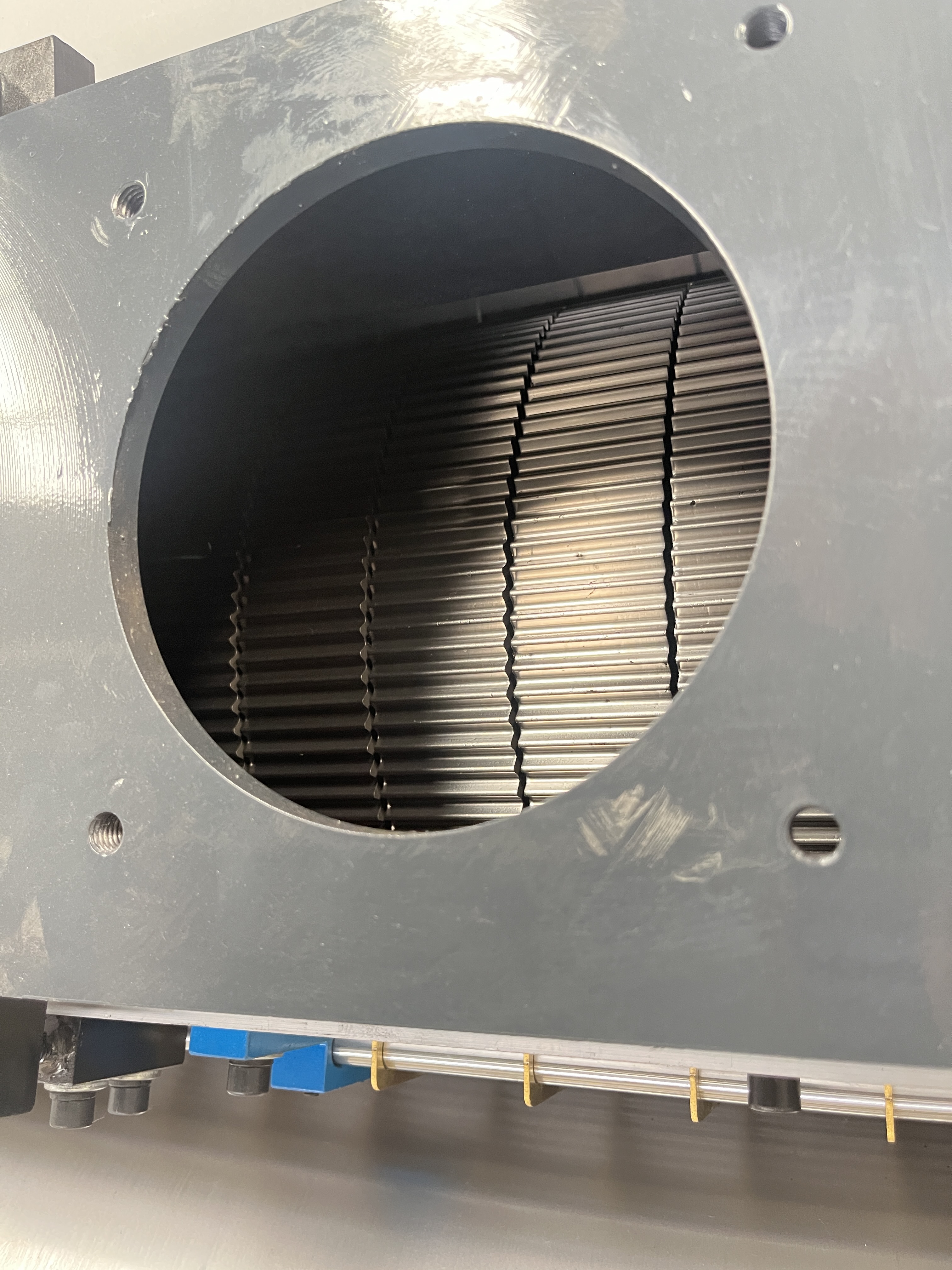

- Corrugated roller made of 48CrMo alloy steel with comprehensive heat treatment and surface hardening process
- Corrugated roller diameter: ¢360mm with surface hardness above HRC60 degrees
- Key roller and pressure roller bearings utilize Havalo bearings
- Pressure roller: ¢370mm, ground and chrome-plated surface, air pressure controlled movement with buffer device
- Glue roller unit features integral skateboard structure for easy maintenance access
- Glue roller diameter: ￠252mm with polished surface, 25-line pit-type mesh processing, and hard chrome plating
- Scraper roller surface polished and hard chrome-plated
Parameters of Main Parts
| Component |
Specifications |
| Upper & Lower Corrugated Roller |
Φ360mm |
| Pressure Roller |
Φ290mm, 48CrMo high quality alloy steel, quenched |
| Glue Roller |
Φ240mm, 48CrMo high quality alloy steel, surface treated with special mesh nicking and chrome-plating |
| Glue Scraping Roller |
Φ120mm, 20# seamless steel pipe, place of origin: Chengdu |
| Pre-heating Roller |
Φ320mm, 20G Jigang steel, wall thickness: 16mm |
Raw Materials and Bought-in Components
- Side Wallboards and base: casting HT200, place of origin: Hebei
- Base of transmission parts: welded by channel, place of origin: Tangshan Hebei
